AT 12W H.E.

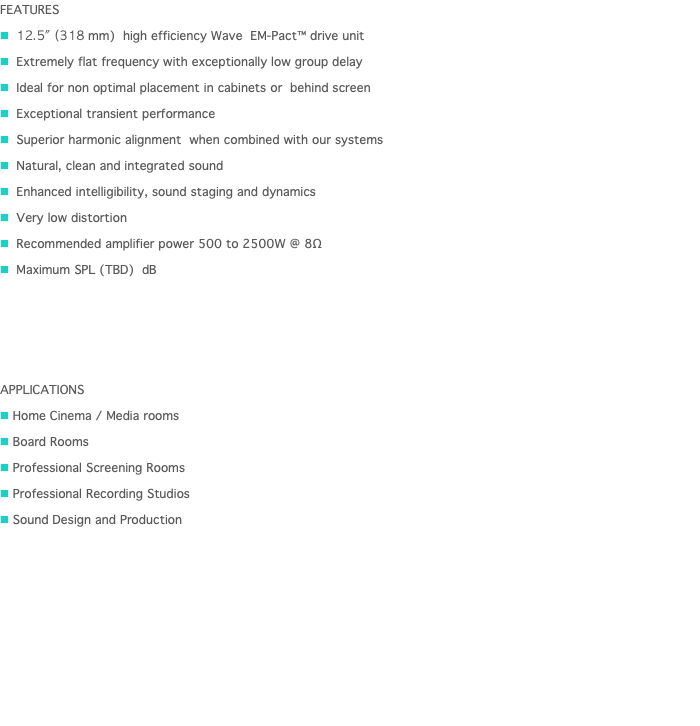

FEATURES n 12.5" (318 mm) high efficiency Wave EM-Pact™ drive unit n Extremely flat frequency with exceptionally low group delay n Ideal for non optimal placement in cabinets or behind screen n Exceptional transient performance n Superior harmonic alignment when combined with our systems n Natural, clean and integrated sound n Enhanced intelligibility, sound staging and dynamics n Very low distortion n Recommended amplifier power 500 to 2500W @ 8Ω n Maximum SPL (TBD) dB APPLICATIONS n Home Cinema / Media rooms n Board Rooms n Professional Screening Rooms n Professional Recording Studios n Sound Design and Production

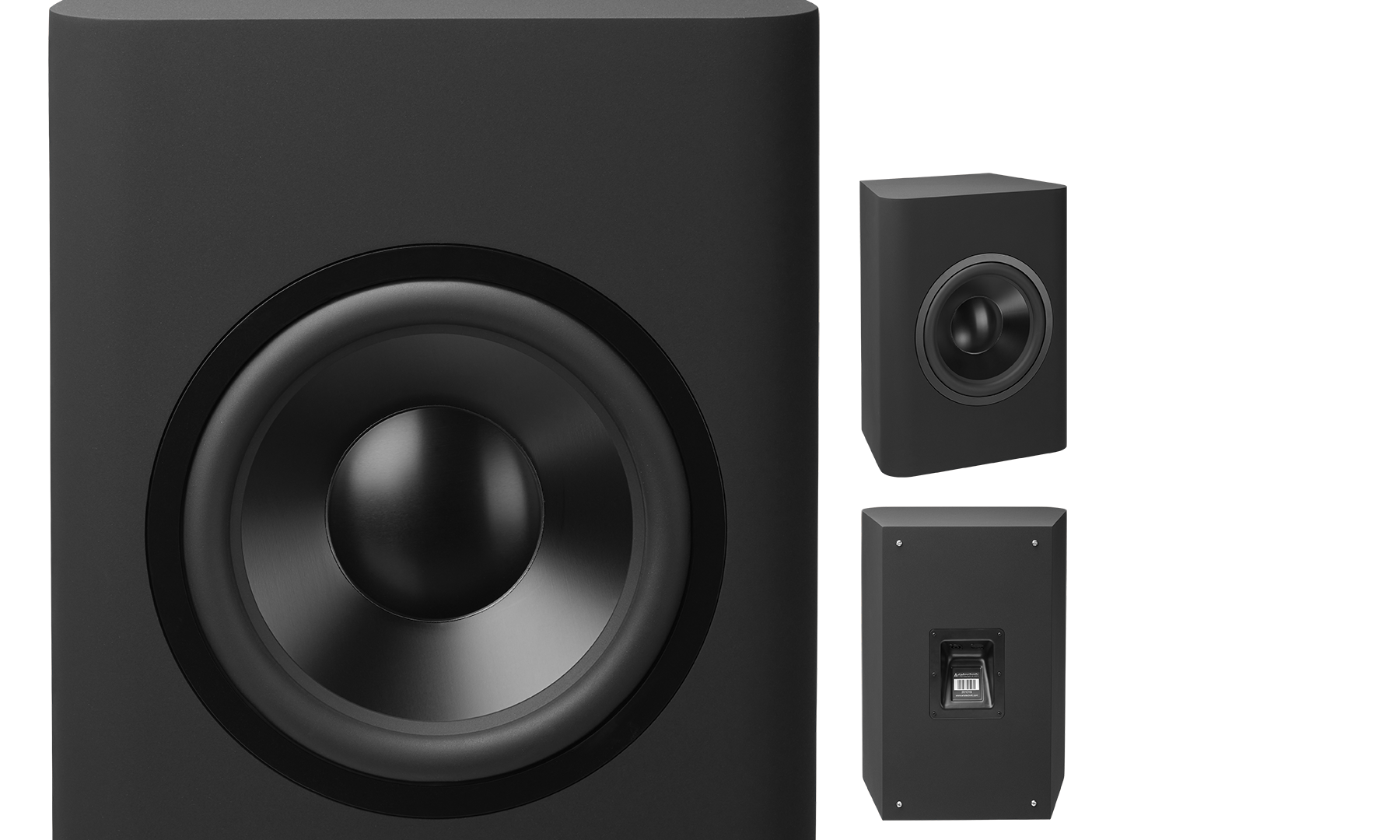

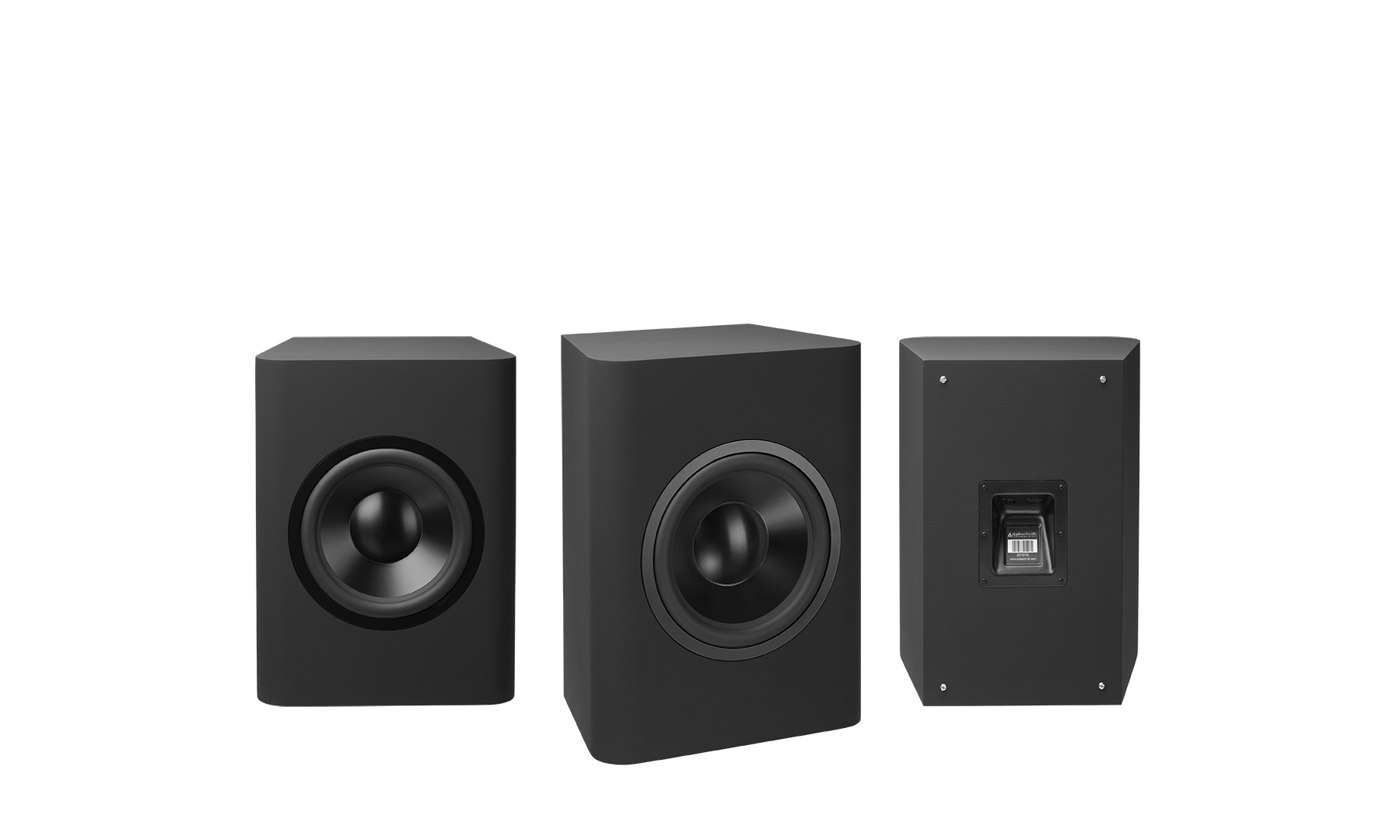

The Cine Series AT 12W H.E. has been designed around a high impact paper coned 12 inch drive unit to bring audiophile performance to a wide range of installation applications. The AT 12 W H.E. is a modular loudspeaker that is intended for use in media rooms, home theaters or anywhere a high output loudspeaker for low frequency reproduction is required. These loudspeakers deliver class leading accuracy, sensitivity and dynamics. Characteristics of the Ariatechnik Wave EM-Pact™ design is a woofer with exceptional transient capabilities and less phase error than with traditional alignments, as well as an extraordinary
transient response.

The AT 12 W H.E. can be used in cabinets, behind screen, or as an in room loudspeaker. Utilizing our amplification's digital signal processing, the system can correct for each of these unique placement applications with relative ease. The AT 12 W H.E. can also be used in conjunction with our AT 12.1 WS to make a larger, higher output full range loudspeaker.
It is recommended to use at least one AT 12 W H.E. for each AT 12.1WS loudspeaker in a cinema application to function as a mid bass drive unit. Should also be combined with one of our class leading low frequency effects loudspeakers to make for a complete wide-bandwith
speaker system.



















Wave EM-Pact™

Ariatechnik’s Wave EM-Pact™ is a group of our core technologies and design techniques that increase bass definition and clarity. This is accomplished by using very high motor strength woofers in carefully sized cabinets and state of the art digital signal processing techniques that increase linearity, lower group delay (or time errors) and lower audible distortions.



The end result is a level of impact and clarity in music and film that is very different and better from that of traditional loudspeaker designs.

.



TECHNICAL SPECIFICATIONS

SYSTEM
Description

Transducer

Crossover Type

Power Handling

Sensitivity:

Frequency Range

Maximum Output:

Nominal Impedance:



CONSTRUCTION

Dimensions ​(HxWxD)

Weight

Shipping Weight


Modular, 12 Inch Woofer

1 x 12.25" (311 mm) Wave EM-Pact™ transducer

Active, variable

Average (A.E.S): 600 Watts, Program: 800 Watts, Peak: 2000 Watts
Woofer: 96 dB

50 Hz - 200 Hz +/- 3 dB

TBD

8 Ohms



22" x 17.5" x 12" / 558.8 mm x 444.5 mm x 304.8 mm

TBD lbs / TBD kg

TBD lbs / TBD kg

Specifications subject to change without notice, please verify

specifications in advance when dealing with critical applications.

Ariatechnik operates under a continuous research and development routine.

Full specification PDF

Rugged construction MDF enclosure, sealed internally braced and finished with textured black paint.

High gloss options available.
