AT 12WS

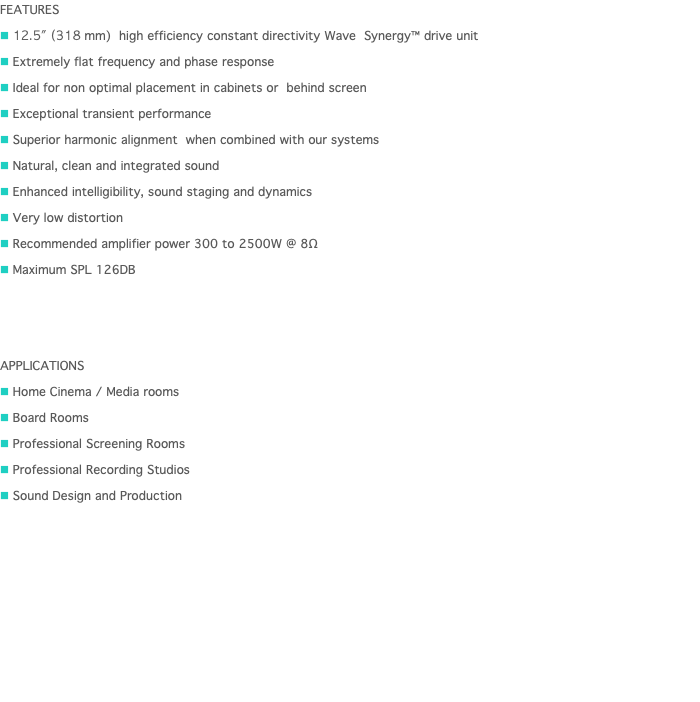

FEATURES n 12.5" (318 mm) high efficiency constant directivity Wave Synergy™ drive unit n Extremely flat frequency and phase response n Ideal for non optimal placement in cabinets or behind screen n Exceptional transient performance n Superior harmonic alignment when combined with our systems n Natural, clean and integrated sound n Enhanced intelligibility, sound staging and dynamics n Very low distortion n Recommended amplifier power 300 to 2500W @ 8Ω n Maximum SPL 126DB APPLICATIONS n Home Cinema / Media rooms n Board Rooms n Professional Screening Rooms n Professional Recording Studios n Sound Design and Production

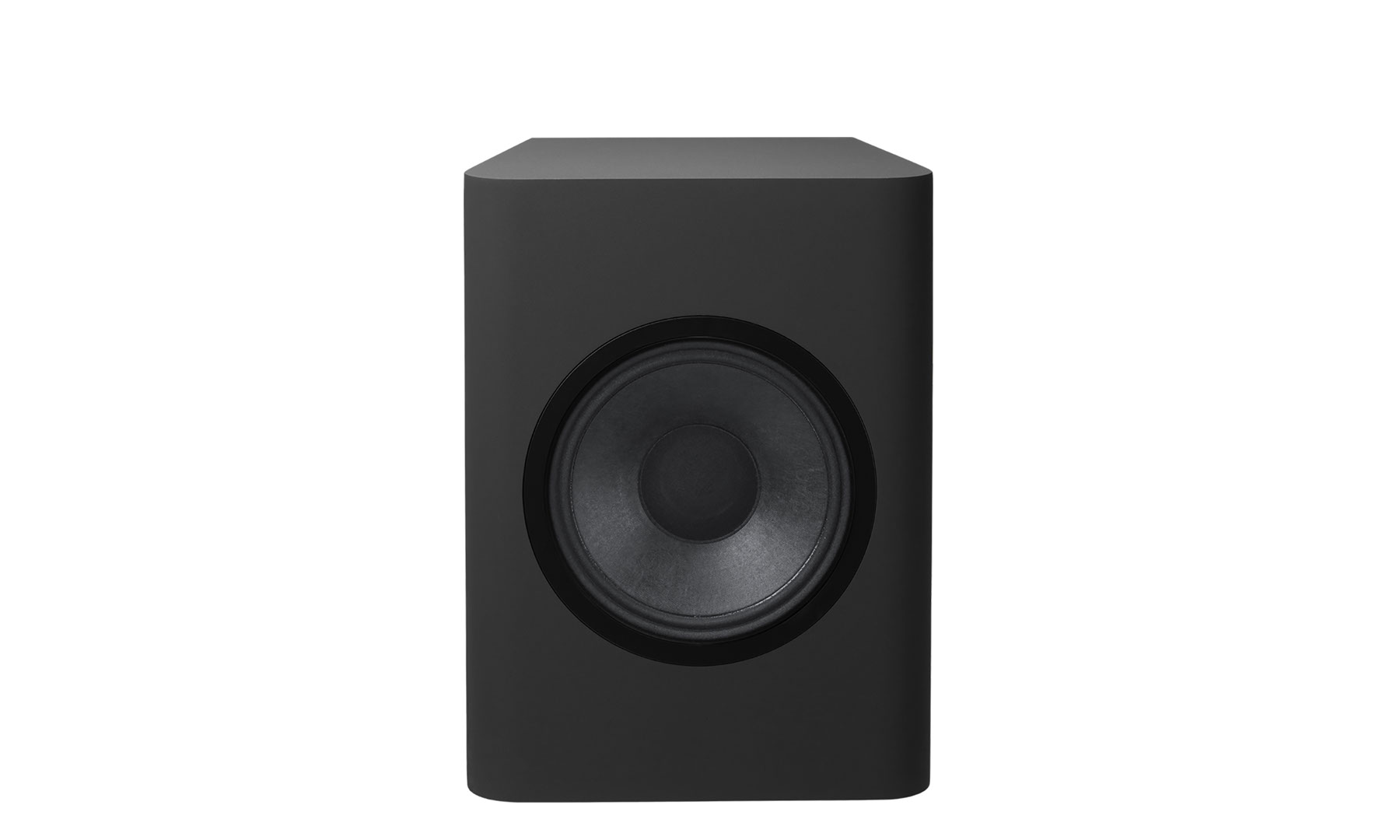

The Cine Series AT 12WS has been designed around the unique Ariatechnik Wave Synergy™ drive unit to bring audiophile performance to a wide range of installation applications. A modular, two-way point source loudspeaker that is intended for use in media rooms, home theaters or anywhere a high output loudspeaker with a wide coverage pattern is required. These loudspeakers deliver class leading accuracy, sensitivity and dynamics. Characteristic of the Wave Synergy™ design is a very wide 'sweet spot' with an exceptionally even response throughout the listening area, as well as an extraordinary transient response.
The AT 12.1 WS can be used in cabinets, behind screen, or as an in room loudspeaker. Utilizing our amplification's digital signal processing, the system can correct for each of these unique placement applications with relative ease. The AT 12.1 WS can also be used in conjunction with one or more AT 12 W H.E. woofers to make a larger, higher output standalone full range loudspeaker. It is recommended to use at least one AT 12 W H.E. for each AT 12.1 WS for full range performance, additionally an LFE subwoofer such as the AT 118 LFE should be used for the lowest frequencies. The other advantage to the AT 12.1 WS is that it can be used either vertically or horizontally with no impact on performance or dispersion unlike all other non point source based loudspeakers.

















WAVE SYNERGY™ DRIVER

Characteristic of the Ariatechnik Wave Synergy™ design is that it presents a large 'sweet spot' both vertically and horizontally with an exceptionally even response throughout the listening area, as well as a extraordinary transient response. The Wave Synergy driver is effectively two drivers properly merged into one where, unlike ordinary drive units, the high frequency unit is positioned on the back of the low frequency driver and in the proper phase alignment with the high frequency driver. As a result they are on the the same axis, so ensuring that sound energy is effectively propagates from the same point and delivered through the center of the low frequency cone as true point source. Such integration optimizes reproduction quality by providing a constant time delay over the frequency spectrum, exceptional transient performance, wide dispersion and superior harmonic alignment, all of which delivers to the listening position a natural, clean and integrated sound with greatly enhanced intelligibility, sound staging and dynamics.



TECHNICAL SPECIFICATIONS

SYSTEM
Description

Transducer

Crossover Type

Power Handling

Native Sensitivity

Frequency Range

Frequency Range - Active Mode

Maximum Output:

Nominal Impedance:



CONSTRUCTION

Dimensions (HxWxD)

Weight

Shipping Weight


Modular, 12 inch two-way point source loudspeaker

1 x 12.5" (318 mm) constant directivity Wave Synergy™ transducer

Active using Ariatechnik Amplification

Average (A.E.S): 400 Watts, Program: 600Watts, peak: 800 Watts
Mid-Woofer: 98 dB, Tweeter: 112 dB

95 Hz - 25 kHz +/- 3 dB

87Hz - 30 kHz -10 dB

126 dB

8 Ohms



11" x 17.5" x 12"

35 lbs /  15.9 kg

TBD

Specifications subject to change without notice, please verify

specifications in advance when dealing with critical applications.

Ariatechnik operates under a continuous research and development routine.

Full specification PDF

Rugged construction MDF enclosure, sealed internally braced and finished with textured black paint.
High gloss options available.
