AT 44 6k
4 Channel Advanced Amplifiers
Ariatechnik’s 4 channel amplifiers present a unique combination of power and audio performance combining state of the art DSP and network control with many integrator friendly features. Our Amplifiers offer next generation technologies that result in sound quality and value without peer. Available in models developing between 1,500 Watts and 5,000 Watts per channel (or 10,000 Watts for a bridged pair).
Uniquely each channel can be optimized to deliver its power into 2, 4 or 8 Ohm nominal loads as well as 25V, 70V & 100V constant Voltage (CV) lines. This offers designers and integrators unparalleled flexibility and cost-effectiveness. Using state of the art components and a finely optimized design results in generous power reserves that ensure pristine sound quality is maintained even under the most extreme conditions.
Number of output channels:
Total power output, all channels driven:
Digital Signal Processing:
Control, monitoring and system:
System standby and wakeup:
Four Channel Class D Amplifier with built in DSP
6,000 Watts RMS
4x Analogue, 2x AES3 and 4x Dante™ (factory fitted option)
High performance 96kHz DSP on all inputs and outputs

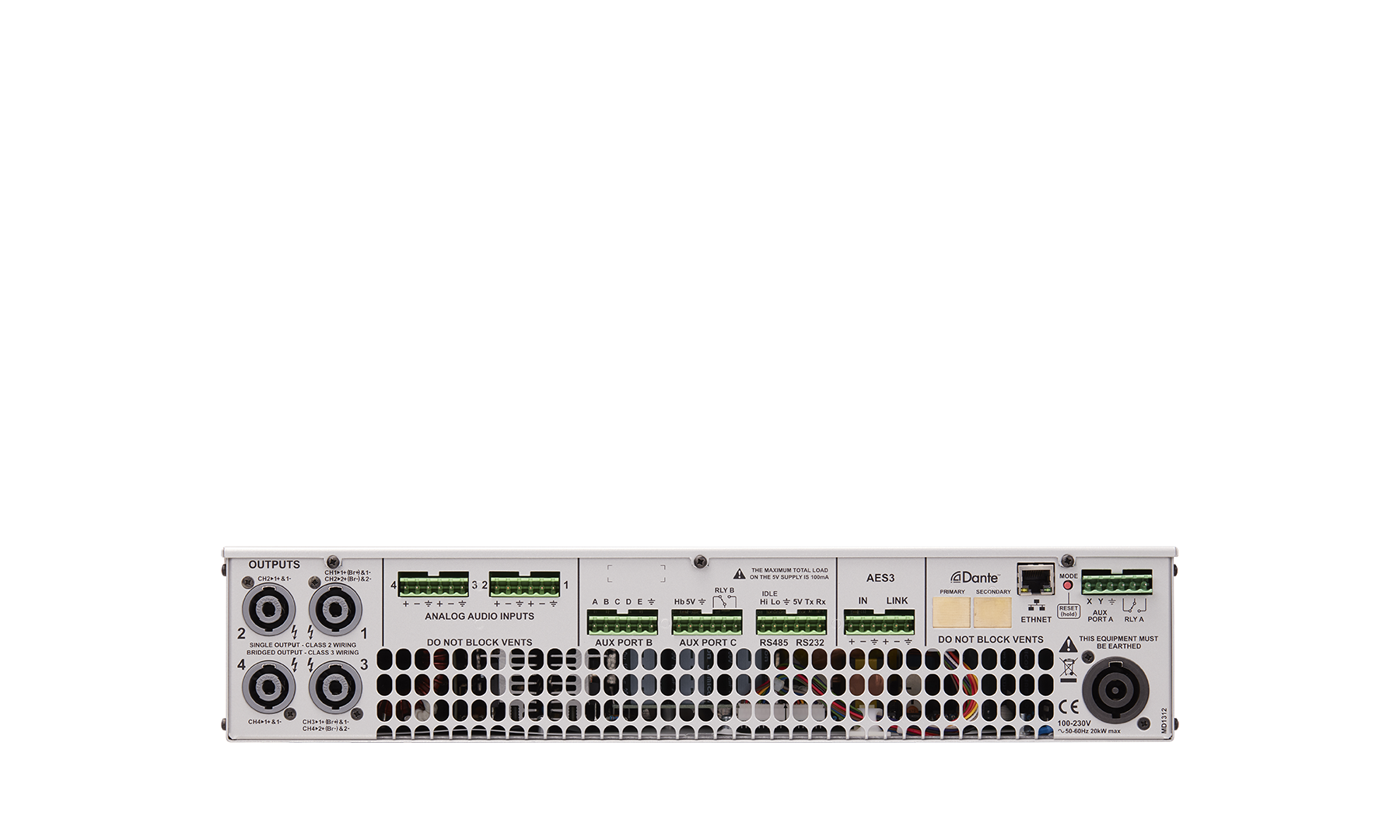

Ethernet network, RS232 & RS485
Volt-free relay and contact closure ports. Heartbeat system health output
Standby after user defined time with fast wake up on audio
Deep ECO sleep after user defined time with take up on command
Network command, audio detection & contact closure
See AT 44 Series Amplifier Datasheet for complete specifications
Specifications subject to change without notice, please verify
specifications in advance when dealing with critical applications.
Ariatechnik operates under a continuous research and development routine.
Full specification PDF
