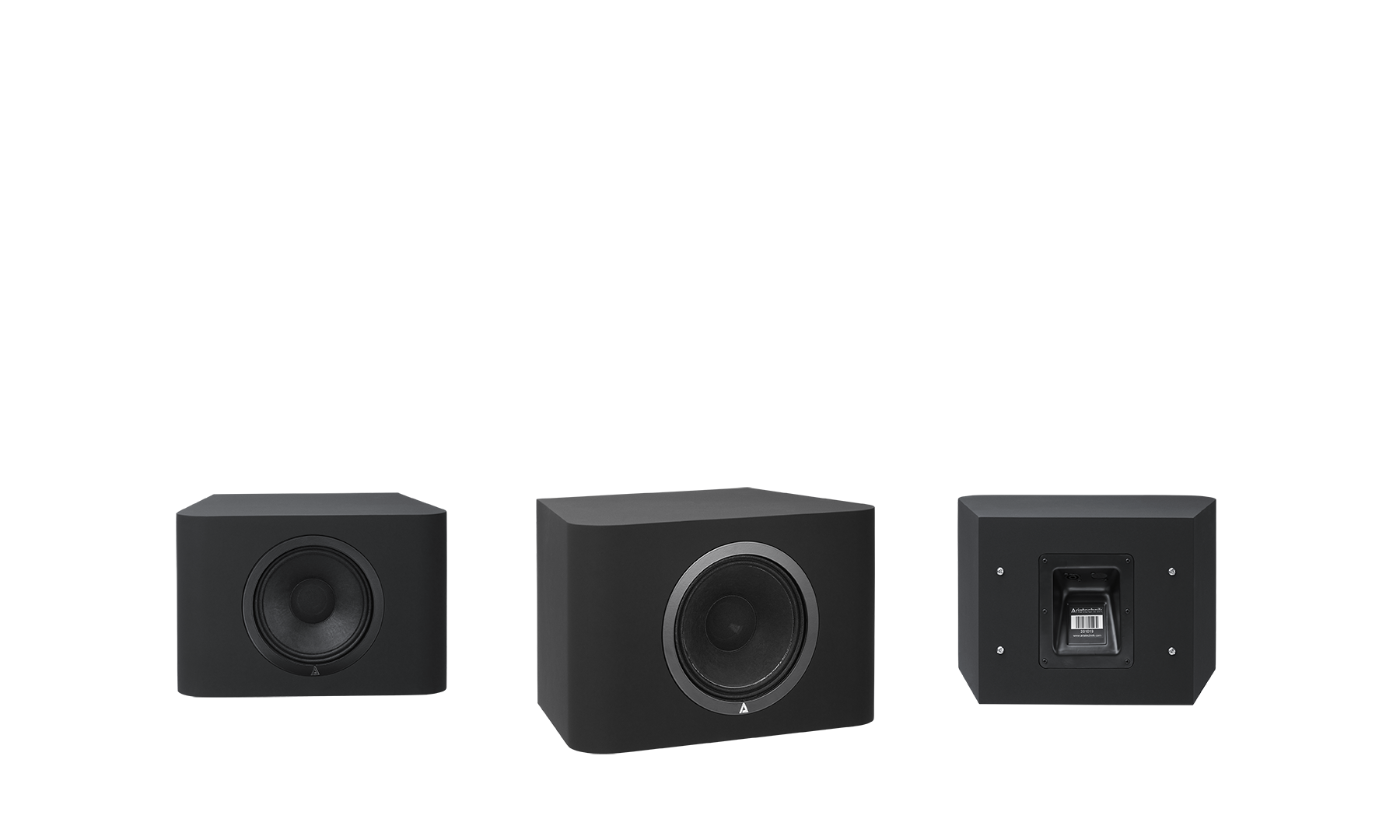

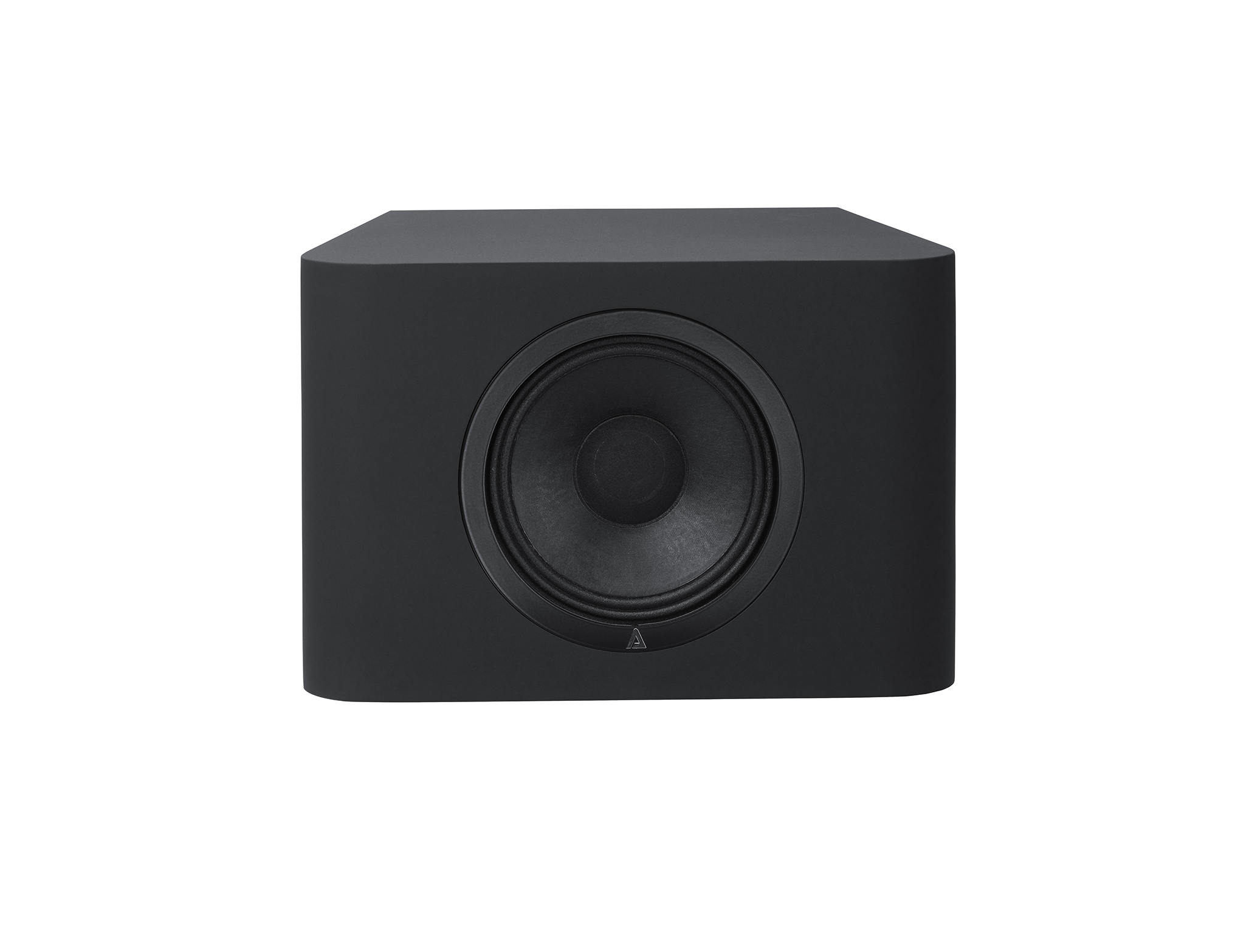

AT 8.1 WS

The Cine Series AT 8.1 WS has been designed around the unique Ariatechnik Wave Synergy™ drive unit to bring audiophile performance to a wide range of installation applications. A modular, two-way point source loudspeaker that is intended for use in media rooms , home theaters or anywhere a high output loudspeaker with a wide coverage pattern is required. These loudspeakers deliver class leading accuracy, sensitivity and dynamics. Characteristic of the Wave Synergy™ design is a very wide 'sweet spot' with an exceptionally even response throughout the listening area, as well as an extraordinary transient response.

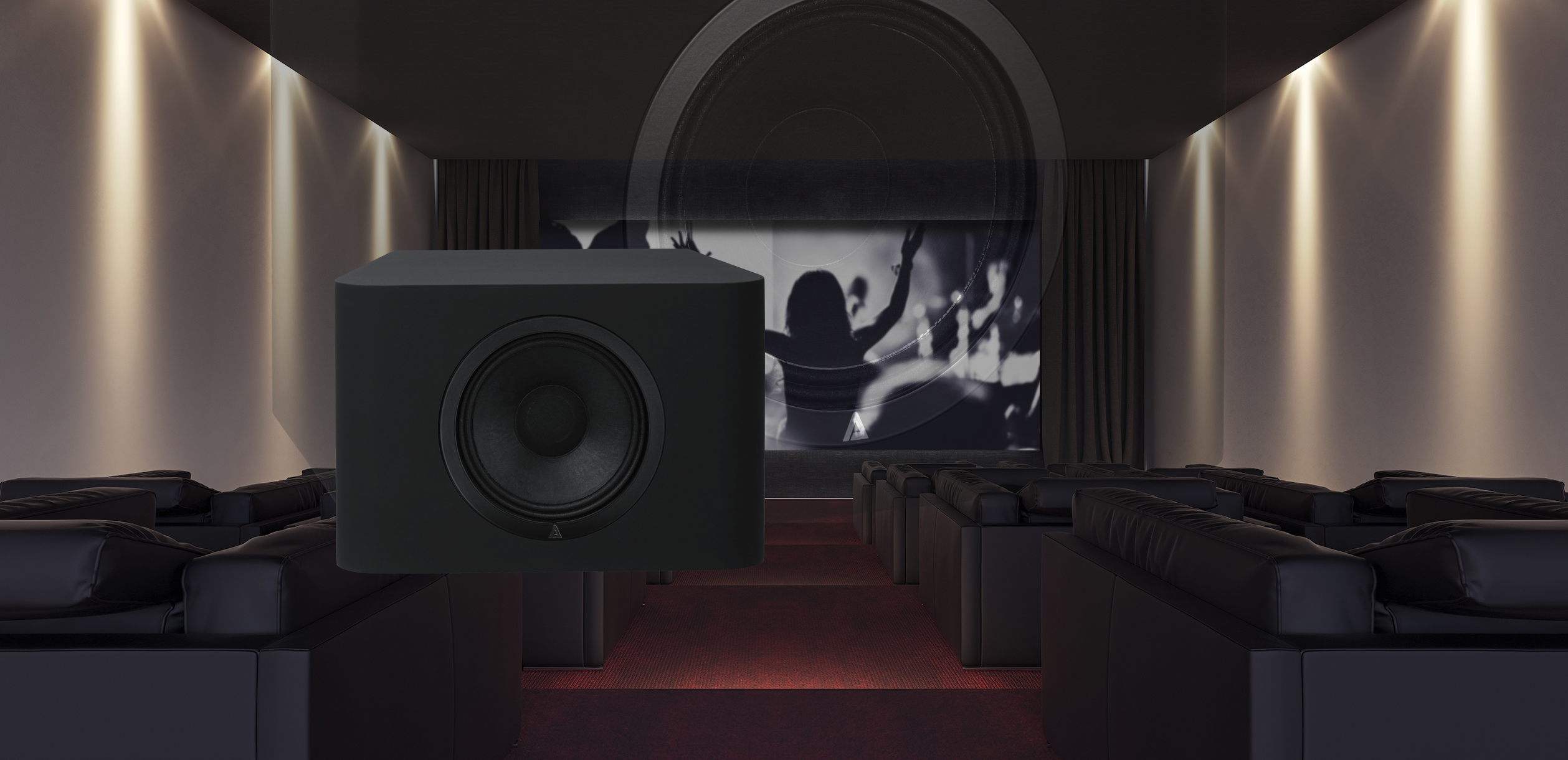

The AT 8.1 WS can be used in cabinets, behind screen, or as

an in room loudspeaker. Utilizing our amplification’s digital signal processing, the system can correct for each of these unique placement applications with relative ease. The AT 8.1 WS can also be used in conjunction with one or more AT 12 W woofers to make a larger, higher output standalone full range loudspeaker. It is recommended to use at least one AT 12 W for each AT 8.1 WS for full range performance. The 8.1 WS may also be deployed in either passive or active mode to accommodate individual system requirements by utilizing fewer channels of amplification where appropriate. The other advantage to the AT 8.1 WS is that it can be used either vertically or horizontally with no impact on performance or dispersion unlike all other non point source based loudspeakers.

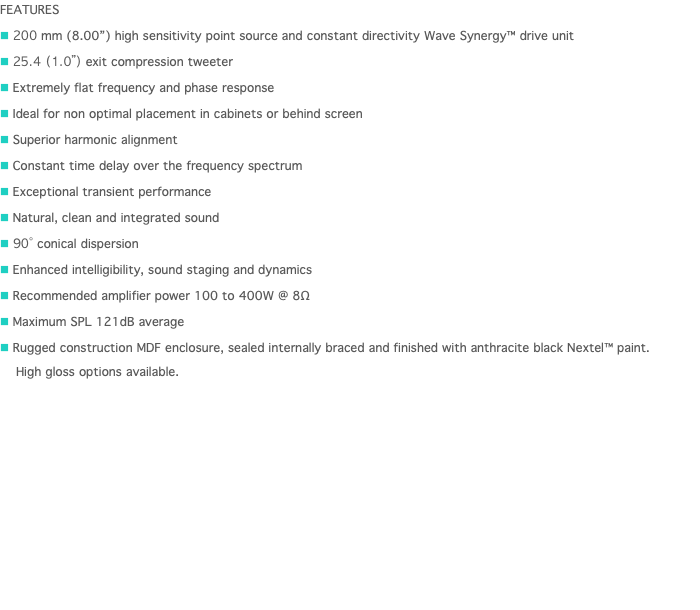

FEATURES n 200 mm (8.00”) high sensitivity point source and constant directivity Wave Synergy™ drive unit n 25.4 (1.0”) exit compression tweeter n Extremely flat frequency and phase response n Ideal for non optimal placement in cabinets or behind screen n Superior harmonic alignment n Constant time delay over the frequency spectrum n Exceptional transient performance n Natural, clean and integrated sound n 90˚ conical dispersion n Enhanced intelligibility, sound staging and dynamics n Recommended amplifier power 100 to 400W @ 8Ω n Maximum SPL 121dB average n Rugged construction MDF enclosure, sealed internally braced and finished with anthracite black Nextel™ paint.
 High gloss options available.

TECHNICAL SPECIFICATIONS

SYSTEM

Frequency Response

(Active Mode)

Nominal Dispersion

Directivity Factor (Q)

Directivity Index (DI)

Dynamic Range

Maximum SPL

Crossover Type



Transducers





Native Sensitivity (1W/1M)

Mid -Woofer

Tweeter

Power Handling

Average (A.E.S)

Program

Peak

Nominal Impedance





95 Hz - 30 kHz ±3 dB

77 Hz - 40 kHz - 10dB

90˚ conical

5.8

7.0

106 dB

121 dB peak

Active is standard

Passive optional

200 mm (1 x 8”) constant

directivity Wave Synergy™

transducer



93 dB

109 dB



200 Watts

350 Watts

600 Watts

8 Ohms

CONSTRUCTION

Enclosure

Finish



Connectors

Dimensions

(HxWxD)

Weight

Shipping Weight



ACCESSORIES / OPTIONS

Magnetic grill

Passsive Crossover









MDF, sealed and internally braced

Black Anthricite Nextel™ (standard)

Custom finishes available

Neutrik Speakon NL4MP-ST

11” x 17.5” x 12”

279.4 x 444.5 x 304.8

15.9 kg (35 lbs)

19.1 kg (42 lbs)





Black fabric

1.8 k.Hz electro-acoustic

Specifications subject to change without notice, please verify

specifications in advance when dealing with critical applications.

Ariatechnik operates under a continuous research and development routine.
