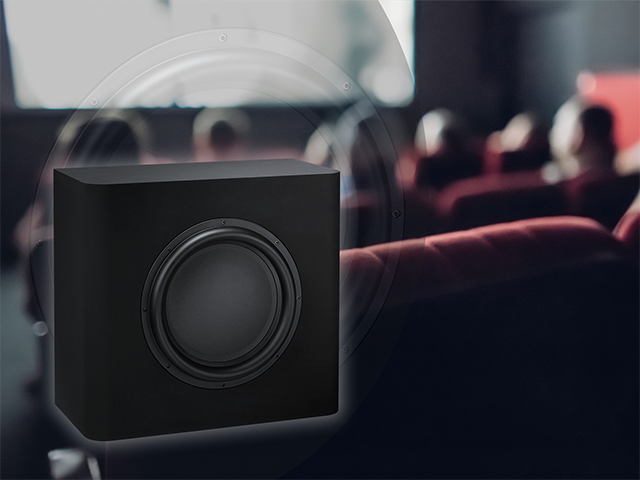

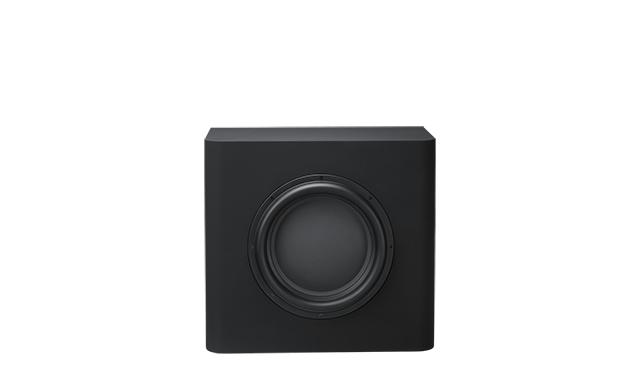

AT 115 LFE

Modular, 15 Inch Wave EM-Pact™ Low Frequency Effects Loudspeaker

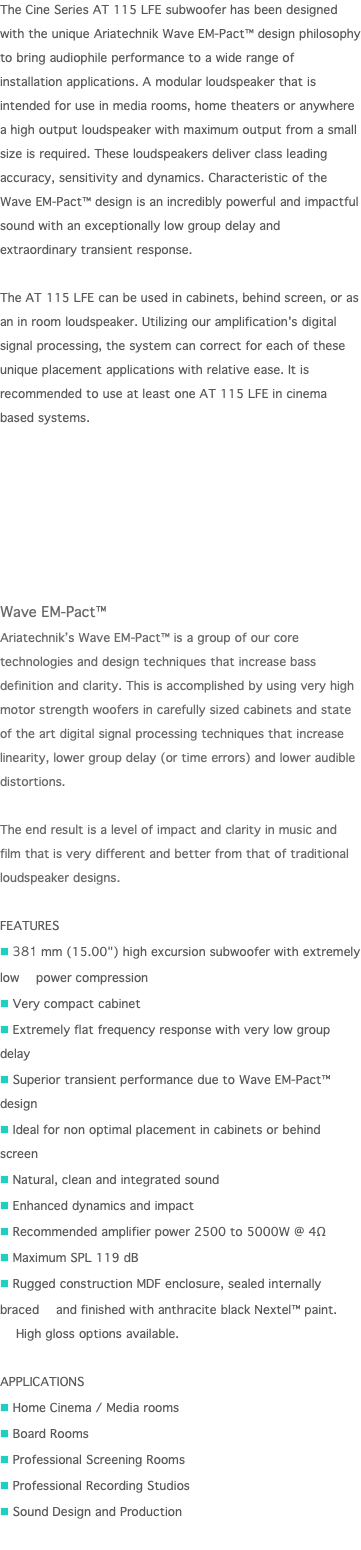

The Cine Series AT 115 LFE subwoofer has been designed with the unique Ariatechnik Wave EM-Pact™ design philosophy to bring audiophile performance to a wide range of installation applications. A modular loudspeaker that is intended for use in media rooms, home theaters or anywhere a high output loudspeaker with maximum output from a small size is required. These loudspeakers deliver class leading accuracy, sensitivity and dynamics. Characteristic of the Wave EM-Pact™ design is an incredibly powerful and impactful sound with an exceptionally low group delay and extraordinary transient response.
The AT 115 LFE can be used in cabinets, behind screen, or as an in room loudspeaker. Utilizing our amplification's digital signal processing, the system can correct for each of these unique placement applications with relative ease. It is recommended to use at least one AT 115 LFE in cinema based systems. Wave EM-Pact™ Ariatechnik’s Wave EM-Pact™ is a group of our core technologies and design techniques that increase bass definition and clarity. This is accomplished by using very high motor strength woofers in carefully sized cabinets and state of the art digital signal processing techniques that increase linearity, lower group delay (or time errors) and lower audible distortions. The end result is a level of impact and clarity in music and film that is very different and better from that of traditional loudspeaker designs. FEATURES n 381 mm (15.00") high excursion subwoofer with extremely low n power compression n Very compact cabinet n Extremely flat frequency response with very low group delay n Superior transient performance due to Wave EM-Pact™ design n Ideal for non optimal placement in cabinets or behind screen n Natural, clean and integrated sound n Enhanced dynamics and impact n Recommended amplifier power 2500 to 5000W @ 4Ω n Maximum SPL 119 dB n Rugged construction MDF enclosure, sealed internally braced n and finished with anthracite black Nextel™ paint.
 High gloss options available. APPLICATIONS n Home Cinema / Media rooms n Board Rooms n Professional Screening Rooms n Professional Recording Studios n Sound Design and Production

TECHNICAL SPECIFICATIONS

SYSTEM

Description







Transducer:

Crossover Type:

Power Handling:





Sensitivity:

Frequency Range:



Maximum Output:

Nominal Impedance:





CONSTRUCTION

Dimensions

(HxWxD)

Weight

Shipping Weight









Modular, 15 Inch low frequency effects loudspeaker
 15" (381 mm)  high excursion Wave EM-Pact™ transducer

Active / variable

Average: 1000 Watts, Program: 2500 Watts, Peak: 5000 Watts

85 dB

26 Hz - 120 Hz +/- 3 dB

 19 Hz - 200 Hz - 10 dB

 119 dB peak

4 Ohms



22" x 24" x 12"

558.8 mm x 609.6 mm x 304.9 mm

115 lbs

(TBD) kg



Specifications subject to change without notice, please verify

specifications in advance when dealing with critical applications.

Ariatechnik operates under a continuous research and
development routine.
