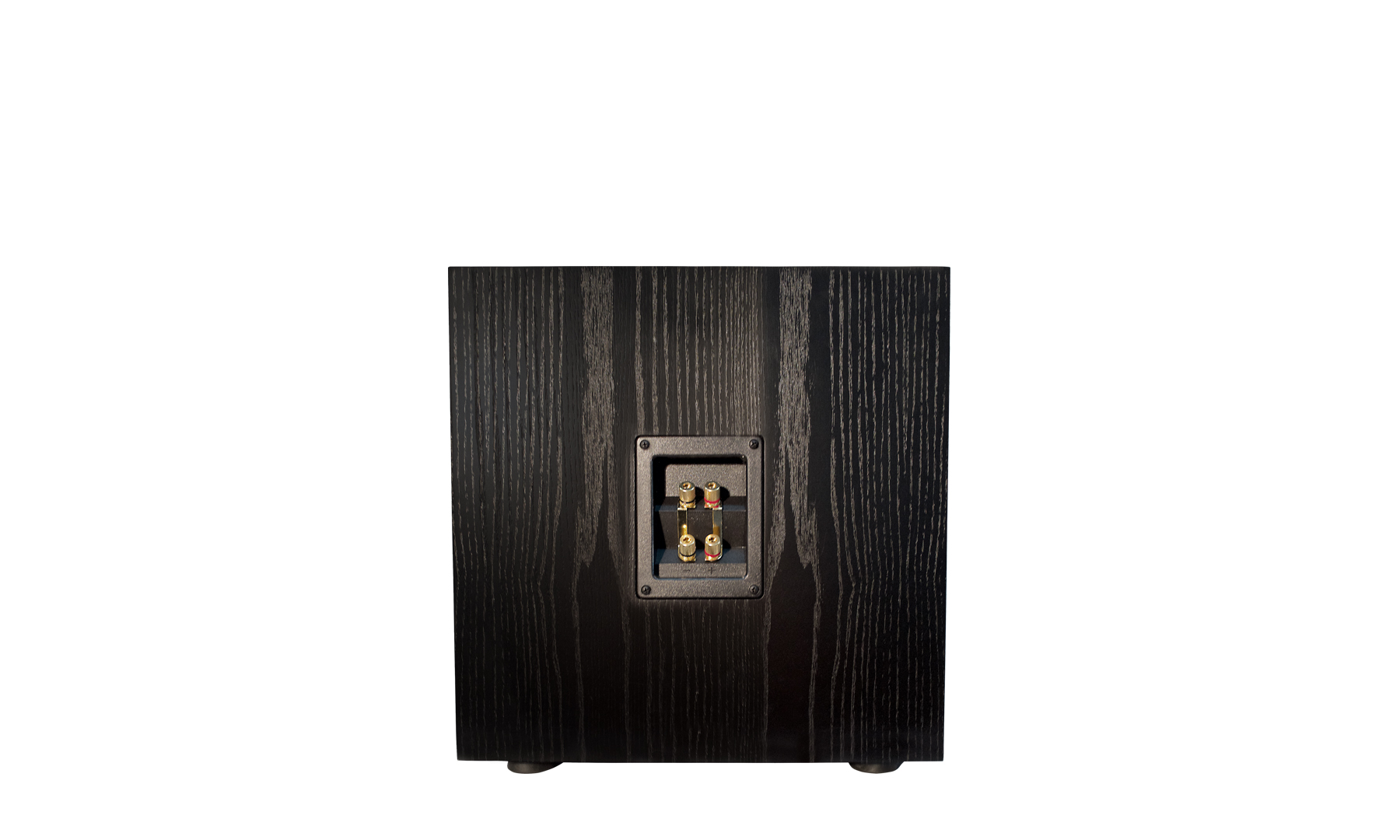

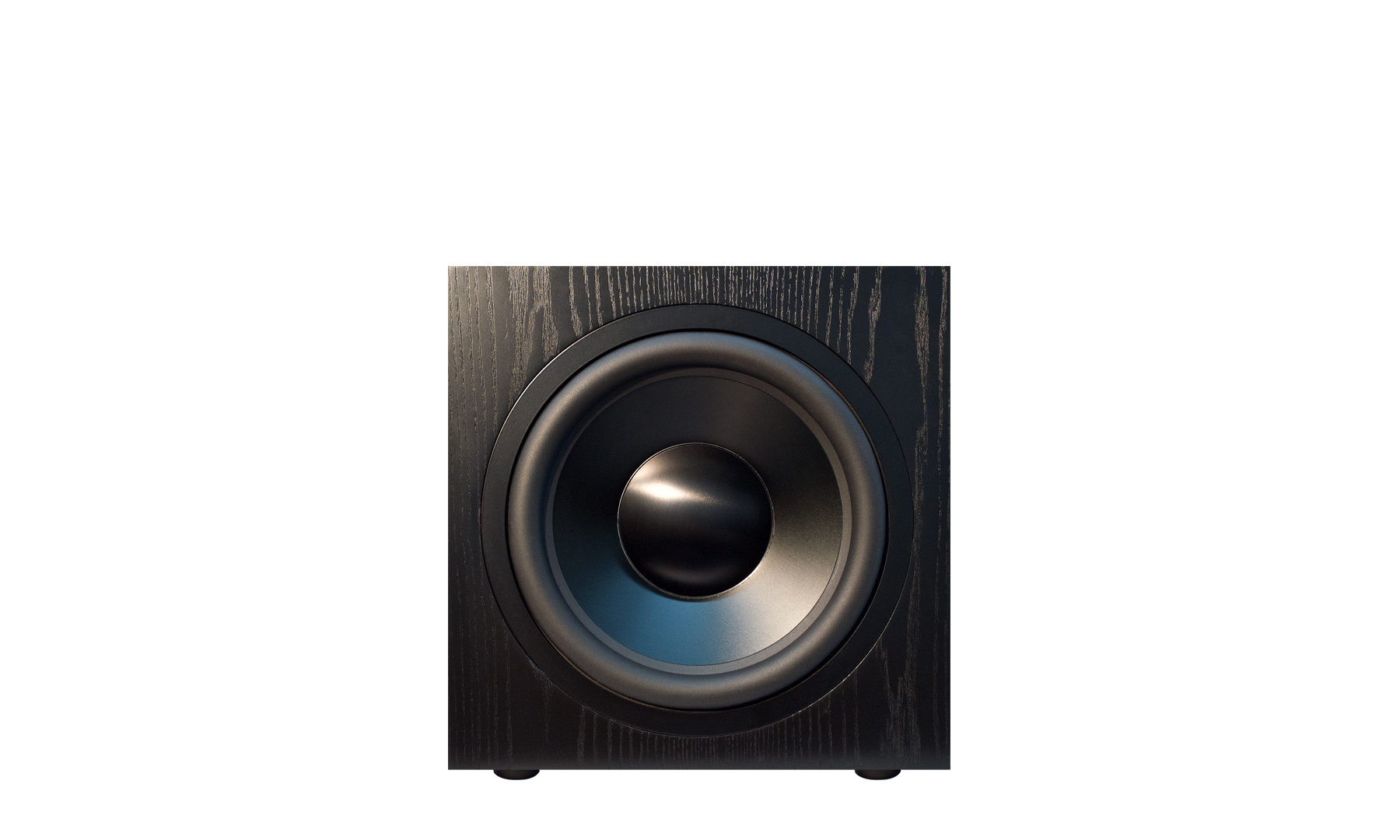

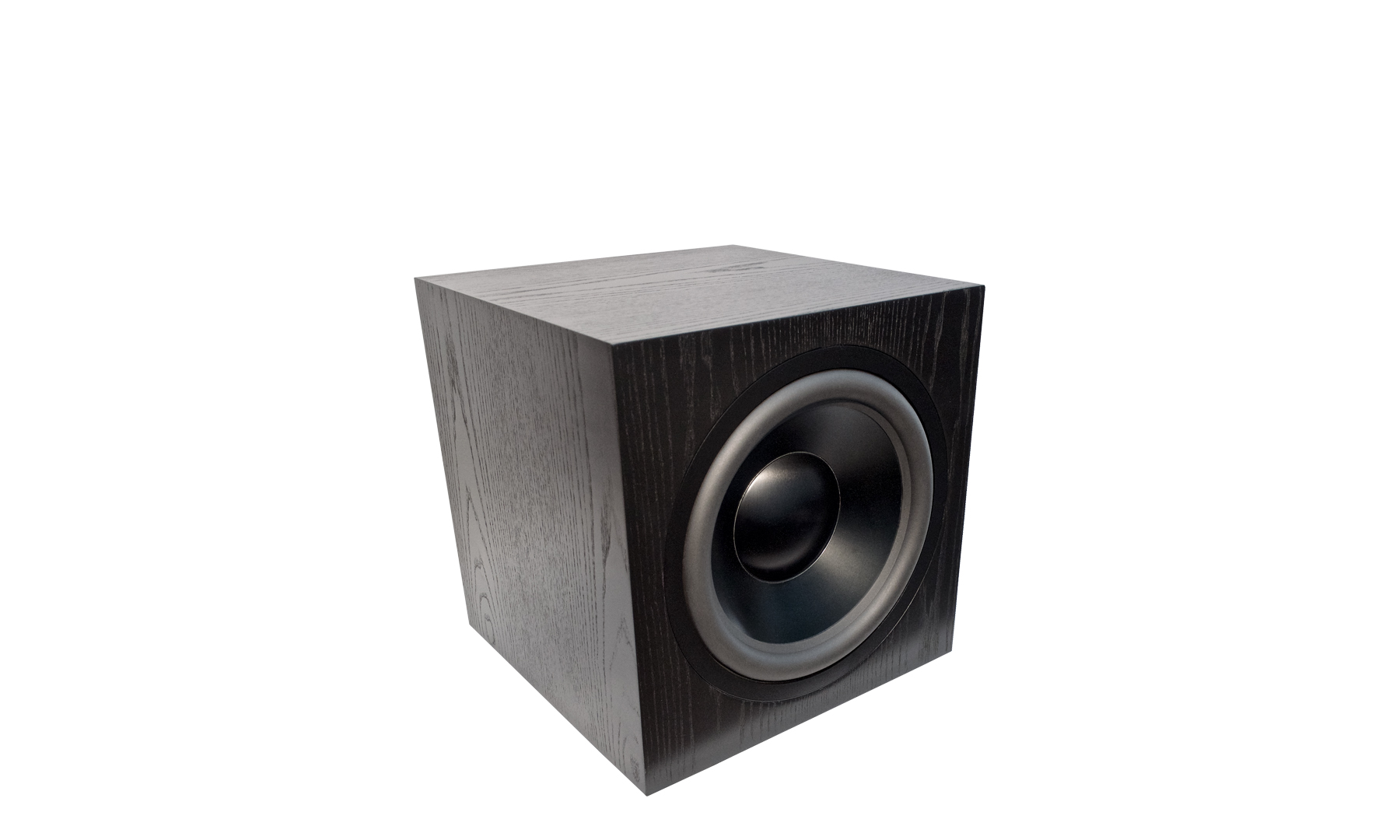

AT 12 IR

In room Wave EM-Pact subwoofer

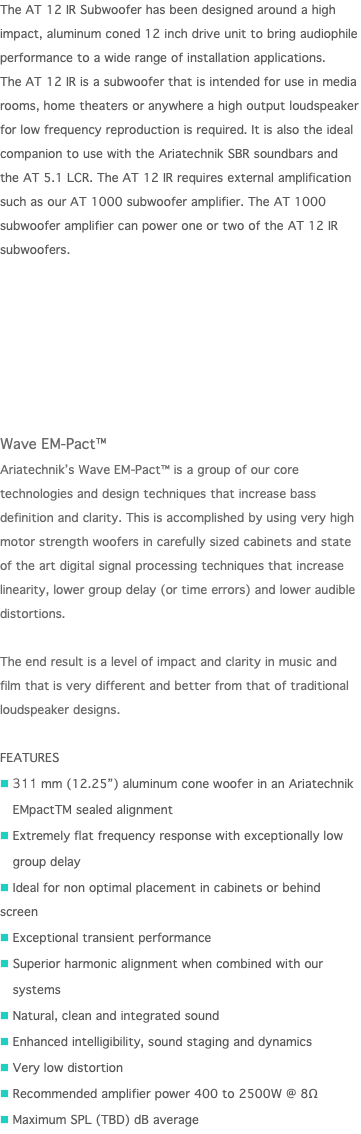

The AT 12 IR Subwoofer has been designed around a high impact, aluminum coned 12 inch drive unit to bring audiophile performance to a wide range of installation applications.

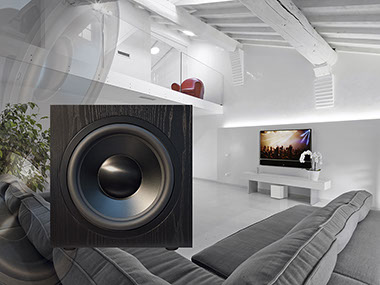

The AT 12 IR is a subwoofer that is intended for use in media rooms, home theaters or anywhere a high output loudspeaker
for low frequency reproduction is required. It is also the ideal companion to use with the Ariatechnik SBR soundbars and the AT 5.1 LCR. The AT 12 IR requires external amplification such as our AT 1000 subwoofer amplifier. The AT 1000 subwoofer amplifier can power one or two of the AT 12 IR subwoofers. Wave EM-Pact™ Ariatechnik’s Wave EM-Pact™ is a group of our core technologies and design techniques that increase bass definition and clarity. This is accomplished by using very high motor strength woofers in carefully sized cabinets and state of the art digital signal processing techniques that increase linearity, lower group delay (or time errors) and lower audible distortions. The end result is a level of impact and clarity in music and film that is very different and better from that of traditional loudspeaker designs. FEATURES n 311 mm (12.25”) aluminum cone woofer in an Ariatechnik n EMpactTM sealed alignment n Extremely flat frequency response with exceptionally low n group delay n Ideal for non optimal placement in cabinets or behind screen n Exceptional transient performance n Superior harmonic alignment when combined with our n systems n Natural, clean and integrated sound n Enhanced intelligibility, sound staging and dynamics n Very low distortion n Recommended amplifier power 400 to 2500W @ 8Ω n Maximum SPL (TBD) dB average

TECHNICAL SPECIFICATIONS

SYSTEM

Description



Transducer:

Crossover Type:



Power Handling:





Sensitivity:

Frequency Range:



Maximum Output:

Nominal Impedance:



CONSTRUCTION

Dimensions (HxWxD)



Weight

Shipping Weight









Modular, 12 Inch Woofer
1 x 12.25" (311 mm) Wave EM-Pact™ transducer

Active, variable using AT 1000 subwoofer amplifier

Average (A.E.S): 200 Watts, Program: 400 Watts, Peak: 2000 Watts

88 dB

35 Hz - 200 Hz +/- 3 dB

26 Hz - 290 Hz - 10 dB

TBD

8 Ohms



14.5 x 14.5 x 14.5 without grill

368.3 mm x 368.3 mm x 368.3 mm

TBD lbs / (TBD) kg

TBD lbs / (TBD) kg



Specifications subject to change without notice, please verify

specifications in advance when dealing with critical applications.

Ariatechnik operates under a continuous research and
development routine.
